Tilt-and-slide PSK patio system
IGLO ENERGY CLASSIC PSK PVC patio doors
Profiles, glazing and operation for your opening.
82 mm, seven-chamber class A PVC PSK system with three seals and 24–52 mm glazing in the CLASSIC profile variant.
Request a quote
Key features
IGLO ENERGY CLASSIC PSK construction and use
- ✓Class A profile made exclusively from virgin material
- ✓MACO SKB-S Standard fittings for sashes up to 160 kg
- ✓Three EPDM sealing gaskets
- ✓Standard triple glazing with Ug = 0.5 W/(m²K)

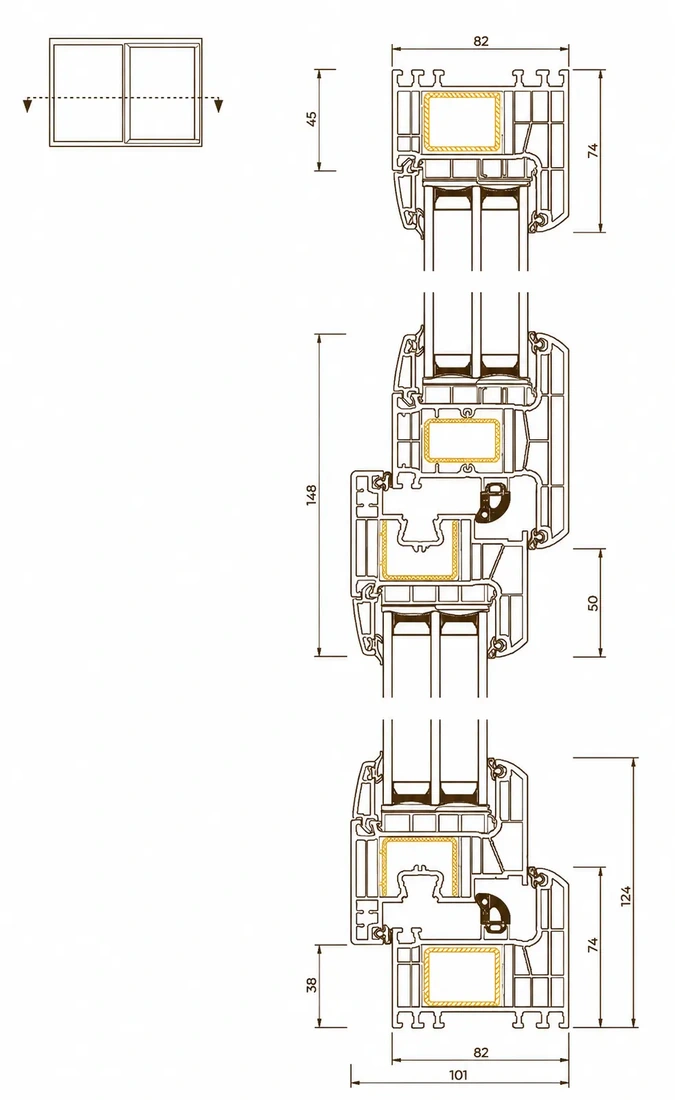

Door cross-section
Technical data
IGLO ENERGY CLASSIC PSK specification table
| System type | PVC tilt-and-slide terrace system |
|---|---|
| Profile class and material | Class A; made exclusively from virgin material |
| Number of chambers | 7 |
| Installation depth | 82 mm |
| Thermal transmittance | Uw = 0.66 W/(m²K)* |
| Glazing unit thickness | 24–52 mm |
| Standard glazing | Triple-glazed, double-chamber, argon-filled unit; Ug = 0.5 W/(m²K) |
| Gaskets | 3 EPDM gaskets: black internal and external plus a central foamed EPDM gasket |
| Fittings | MACO SKB-S System Standard |
| Maximum sash weight | Up to 160 kg |
| Reinforcement | 2 mm closed steel reinforcement in the frame and C-shaped reinforcement in the sash |
| Handle | Aluminium |
| Rail cover | Silver, white, light brown or brown |
| Colour selection | More than 30 PVC foil colours |
* The manufacturer states Uw = 0.66 W/(m²K) for a 2700 × 2300 mm structure with T4 + 18 Swisspacer Ultimate + FL4 + 18 Swisspacer Ultimate + T4 glazing. Actual Uw depends on whole-construction dimensions, glazing, spacer and specification. System weight and size limits require confirmation for the layout; they are not guarantees for every order. Reference Uw is different from glazing Ug and is not a guarantee for every standard glazing package.
A choice for your terrace
When to consider IGLO ENERGY CLASSIC PSK
- The CLASSIC variant
- ENERGY CLASSIC PSK and ENERGY PSK share the 82 mm family but differ in profile shape and glazing options. Compare their cross-sections.
- Everyday ventilation
- Assess frequency of use and handle access. Include threshold and clear-passage requirements in the enquiry.
An individual quotation
What determines IGLO ENERGY CLASSIC PSK pricing?
Opening dimensions, sliding or fixed sections, glazing, finish, hardware and threshold determine the IGLO ENERGY CLASSIC PSK quotation. Installation and removal are agreed for the site.
Send opening dimensions, a photo or drawing, the preferred opening, finish and site location. Include installation, removal and finishing requirements for an individual quotation.
Request a patio-door quoteBefore ordering
Questions about IGLO ENERGY CLASSIC PSK
How does CLASSIC PSK differ from ENERGY PSK?
Both have 82 mm depth, seven chambers and three seals. CLASSIC lists 24–52 mm glazing versus ENERGY's 24–48 mm; profile construction differs.
Does PSK have the same sash weight limit as HS?
No. This PSK model's standard hardware is rated up to 160 kg. HS hardware and limits are assessed separately.
