Tilt-and-slide PSK patio system
IGLO 5 PSK PVC tilt-and-slide patio doors
Profiles, glazing and operation for your opening.
70 mm, five-chamber PVC PSK system with two seals. Sliding and tilt operation; glazing is confirmed for the actual construction.
Request a quote
Key features
IGLO 5 PSK construction and use
- ✓MACO SKB-S Standard fittings for sashes up to 160 kg
- ✓Two black EPDM sealing gaskets
- ✓Standard double glazing with Ug = 1.1 W/(m²K)
- ✓More than 30 PVC foil colours

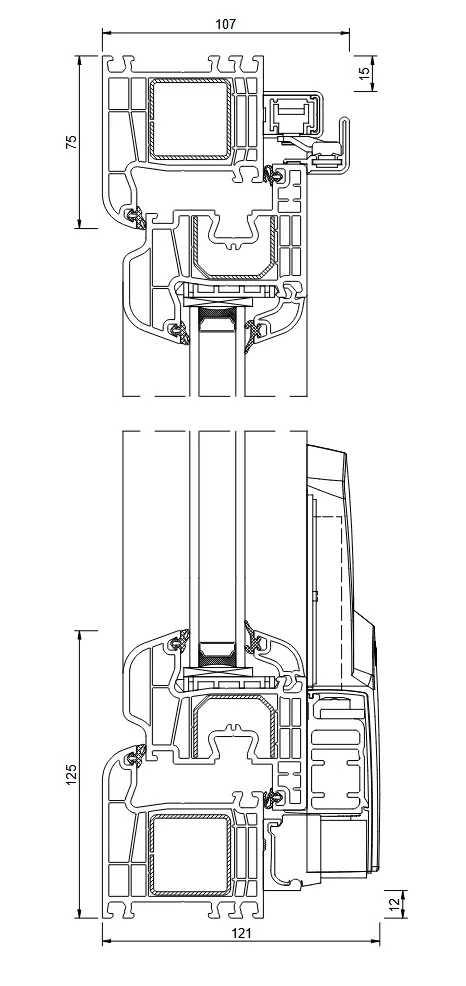

Door cross-section
Technical data
IGLO 5 PSK specification table
| System type | PVC tilt-and-slide terrace system |
|---|---|
| Number of chambers | 5 |
| Installation depth | 70 mm |
| Frame profile height | 75 mm |
| Thermal transmittance | Uw = 0.81 W/(m²K)* |
| Glazing unit thickness | 24–48 mm |
| Standard glazing | Double-glazed, single-chamber, argon-filled unit; Ug = 1.1 W/(m²K) |
| Gaskets | 2 black EPDM gaskets: external and internal |
| Fittings | MACO SKB-S System Standard |
| Maximum sash weight | Up to 160 kg |
| Reinforcement | 1.5 mm closed steel reinforcement in the frame and 2 mm C-shaped reinforcement in the sash |
| Handle | Aluminium; key-lockable option available |
| Rail cover | Silver, white, light brown or brown |
| Profile core | White |
| Colour selection | More than 30 PVC foil colours |
* The manufacturer states Uw = 0.81 W/(m²K) for a 2700 × 2300 mm structure with T4 + 18 Swisspacer Ultimate + FL4 + 18 Swisspacer Ultimate + T4 glazing. Actual Uw depends on whole-construction dimensions, glazing, spacer and specification. System weight and size limits require confirmation for the layout; they are not guarantees for every order. The introduction lists 24–48 mm glazing, while the comparison table lists 24–40 mm. Confirm the selected glazing before ordering. Reference Uw is different from glazing Ug and is not a guarantee for every standard glazing package.
A choice for your terrace
When to consider IGLO 5 PSK
- A 70 mm PSK option
- Assess replacement or new openings together with glazing and installation conditions.
- Glazing data
- The introduction lists 24–48 mm, while the comparison table lists 24–40 mm. Confirm the selected thickness before ordering.
An individual quotation
What determines IGLO 5 PSK pricing?
Opening dimensions, sliding or fixed sections, glazing, finish, hardware and threshold determine the IGLO 5 PSK quotation. Installation and removal are agreed for the site.
Send opening dimensions, a photo or drawing, the preferred opening, finish and site location. Include installation, removal and finishing requirements for an individual quotation.
Request a patio-door quoteBefore ordering
Questions about IGLO 5 PSK
Are glazing Ug and whole-door Uw the same?
No. Ug describes the glazing; Uw describes the whole construction. The 0.81 reference Uw does not guarantee that value with standard Ug = 1.1 glass.
Does IGLO 5 PSK have a ventilation position?
Yes. PSK supports tilt and sliding movement. Handles, direction and sash weight are agreed for the dimensions.
