Sliding patio-door system
IGLO EDGE SLIDE PVC sliding patio doors
Profiles, glazing and operation for your opening.
163 mm, six-chamber PVC sliding system with three seals, 48 or 54 mm glazing and angular profile lines.
Request a quote
Key features
IGLO EDGE SLIDE construction and use
- ✓Class A six-chamber PVC profiles
- ✓Three EPDM sealing gaskets
- ✓Swisspacer Ultimate warm-edge spacer as standard
- ✓More than 30 PVC foil colours

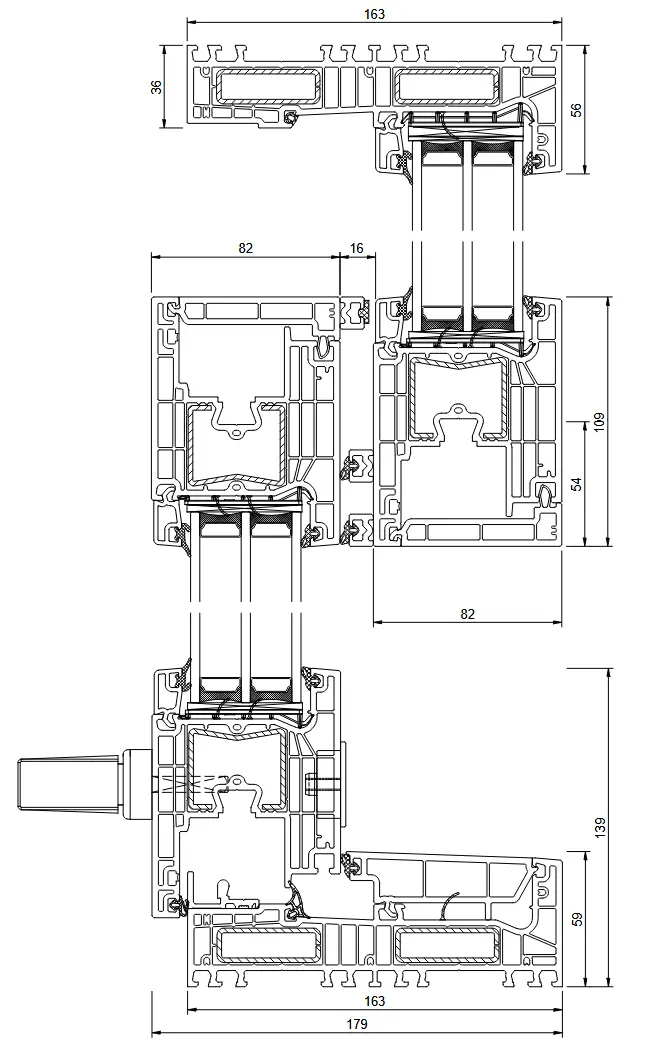

Door cross-section
Technical data
IGLO EDGE SLIDE specification table
| System type | Sliding PVC terrace system |
|---|---|
| Profile class | Class A |
| Number of chambers | 6 |
| Installation depth | 163 mm |
| Thermal transmittance | Uw = 0.65 W/(m²K)* |
| Glazing unit thickness | 48 or 54 mm |
| Standard glazing | Triple-glazed, double-chamber unit; Ug = 0.5 W/(m²K) |
| Gaskets | 3 EPDM gaskets; perimeter and glazing gaskets in black or grey, central gasket in black |
| Warm-edge spacer | Swisspacer Ultimate fitted as standard |
| Welding technology | V-Perfect |
| Handles | Aluminium handle inside and aluminium pull handle outside |
| Colour selection | More than 30 PVC foil colours |
* The manufacturer states Uw = 0.65 W/(m²K) for a 4000 × 2600 mm structure with T4 + 18 Swisspacer Ultimate + FL4 + 18 Swisspacer Ultimate + T4 glazing. The actual value depends on dimensions and configuration. Actual Uw depends on whole-construction dimensions, glazing, spacer and specification. System weight and size limits require confirmation for the layout; they are not guarantees for every order.
A choice for your terrace
When to consider IGLO EDGE SLIDE
- Space-saving movement
- The sash slides alongside the construction without swinging into the room. Assess clear passage from sliding and fixed sections.
- Glazing and sealing
- Assess the six chambers, three seals and glazing together. Reference Uw is a whole-construction value.
An individual quotation
What determines IGLO EDGE SLIDE pricing?
Opening dimensions, sliding or fixed sections, glazing, finish, hardware and threshold determine the IGLO EDGE SLIDE quotation. Installation and removal are agreed for the site.
Send opening dimensions, a photo or drawing, the preferred opening, finish and site location. Include installation, removal and finishing requirements for an individual quotation.
Request a patio-door quoteBefore ordering
Questions about IGLO EDGE SLIDE
Is IGLO EDGE SLIDE a PSK system?
No. It is a sliding system. Compare the separate PSK category if you need a tilt position for ventilation.
How does EDGE SLIDE differ from IGLO SLIDE?
EDGE SLIDE has 163 mm depth, six chambers and 48 or 54 mm glazing. IGLO SLIDE has 82 mm depth, three chambers and is for locations without high insulation requirements.
