Aluminium folding patio-door system
MB-86 Fold Line HD aluminium folding patio doors
Profiles, glazing and operation for your opening.

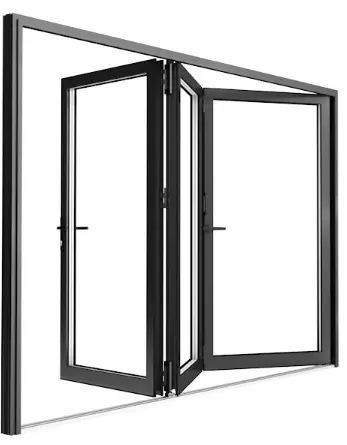

Thermally insulated aluminium folding system with an 86 mm frame. Up to eight leaves in approved layouts, opening inwards or outwards.
Request a quote
Key features
MB-86 Fold Line HD construction and use
- ✓Robust three-chamber aluminium profiles
- ✓Inward or outward folding leaves
- ✓Corner and panoramic configurations with up to 8 leaves
- ✓Weather-sealed and low-threshold solutions

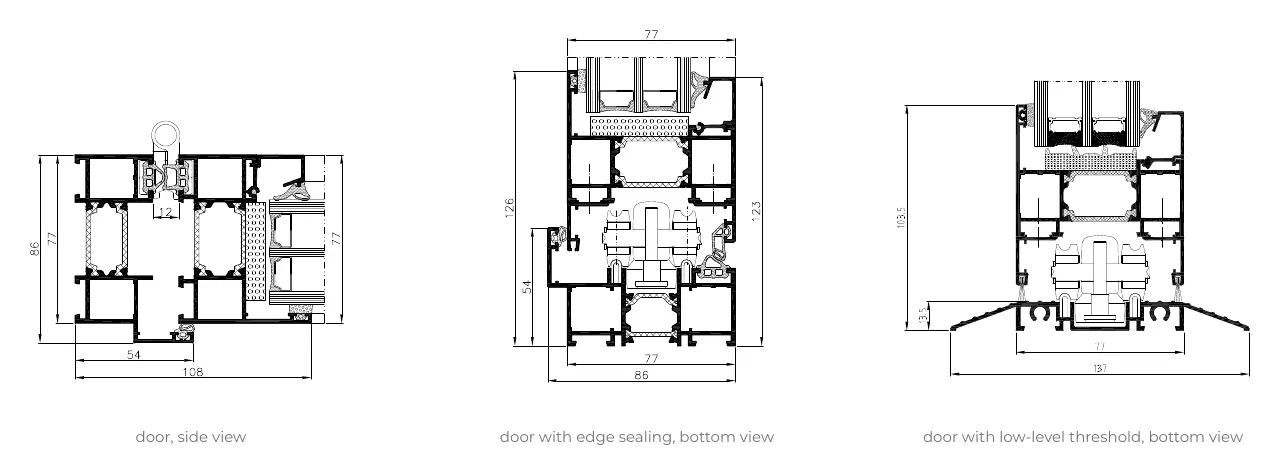

Door cross-section
Technical data
MB-86 Fold Line HD specification table
| System type | Thermally insulated aluminium folding door system |
|---|---|
| Profile chambers | 3 |
| Frame construction depth | 86 mm |
| Leaf construction depth | 77 mm |
| Thermal breaks | 24 mm in the frame and 34 mm in the leaf |
| Number of leaves | Up to 8 |
| Weight per leaf | Up to 120 kg |
| Maximum leaf height | Up to 3000 mm |
| Leaf width | 700–1200 mm |
| Glazing thickness | 13.5–61.5 mm; double and triple glazing available |
| Opening direction | Inwards or outwards |
| Configuration options | Straight, corner and panoramic structures |
| Threshold | Weather-sealed threshold or a more accessible low-threshold option |
| Compatibility | Compatible with the ALUPROF MB-86N window and door system |
Final dimensions, leaf configuration, glazing and threshold type are selected for the individual project. Actual Uw depends on whole-construction dimensions, glazing, spacer and specification. System weight and size limits require confirmation for the layout; they are not guarantees for every order.
A choice for your terrace
When to consider MB-86 Fold Line HD
- Opening a wide aperture
- Folded leaves stack at the side and need space. Plan the clear passage and stacking side in the drawing.
- Thresholds and leaf count
- Coordinate the threshold, opening direction and layout with use. Maximum system dimensions require confirmation for the complete structure.
An individual quotation
What determines MB-86 Fold Line HD pricing?
Opening dimensions, sliding or fixed sections, glazing, finish, hardware and threshold determine the MB-86 Fold Line HD quotation. Installation and removal are agreed for the site.
Send opening dimensions, a photo or drawing, the preferred opening, finish and site location. Include installation, removal and finishing requirements for an individual quotation.
Request a patio-door quoteBefore ordering
Questions about MB-86 Fold Line HD
Can doors open both inwards and outwards?
The system supports both principles. The actual layout depends on opening size, available indoor and terrace space, and threshold details.
Can every project have eight leaves?
Up to eight leaves is a system capability. Leaf count, individual dimensions and weight must be approved for the layout and glazing.
