Large-format aluminium exterior doors
Exterior doors with offset pivot
Distinctive architecture on an impressive scale.

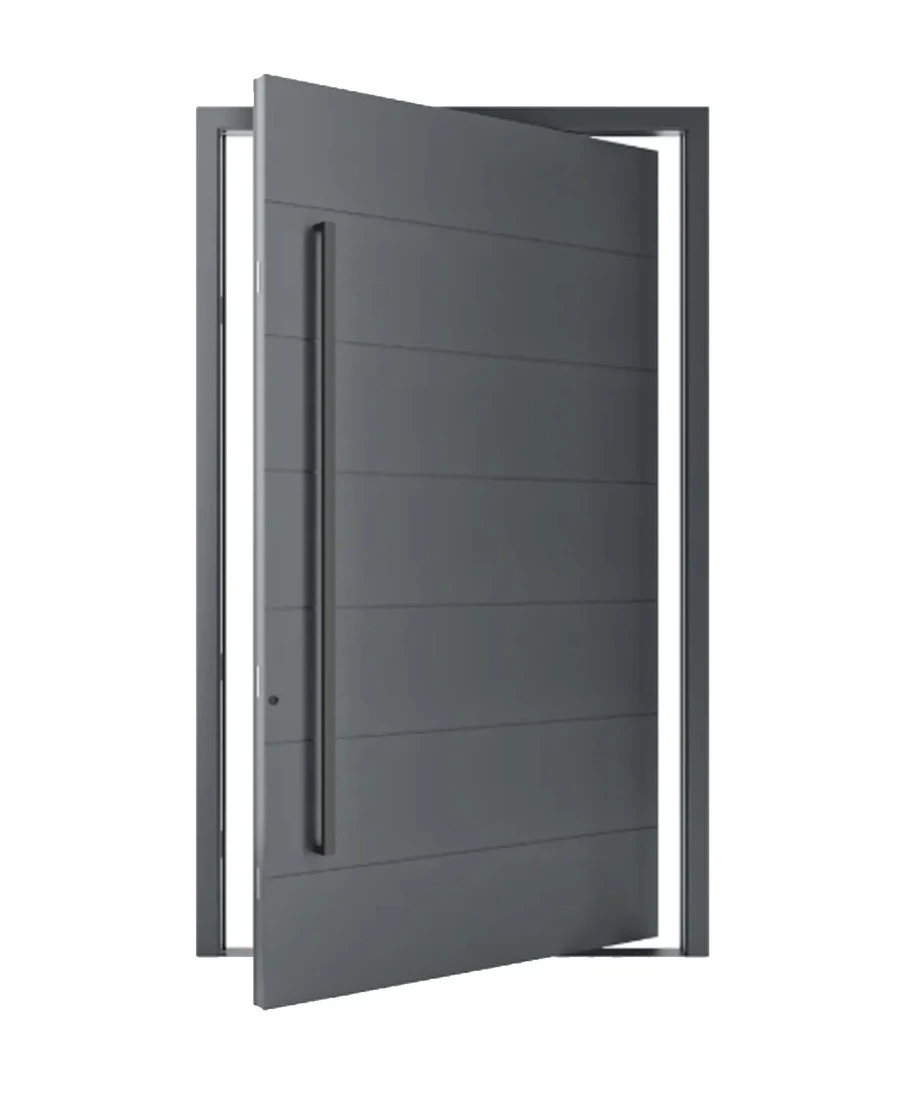

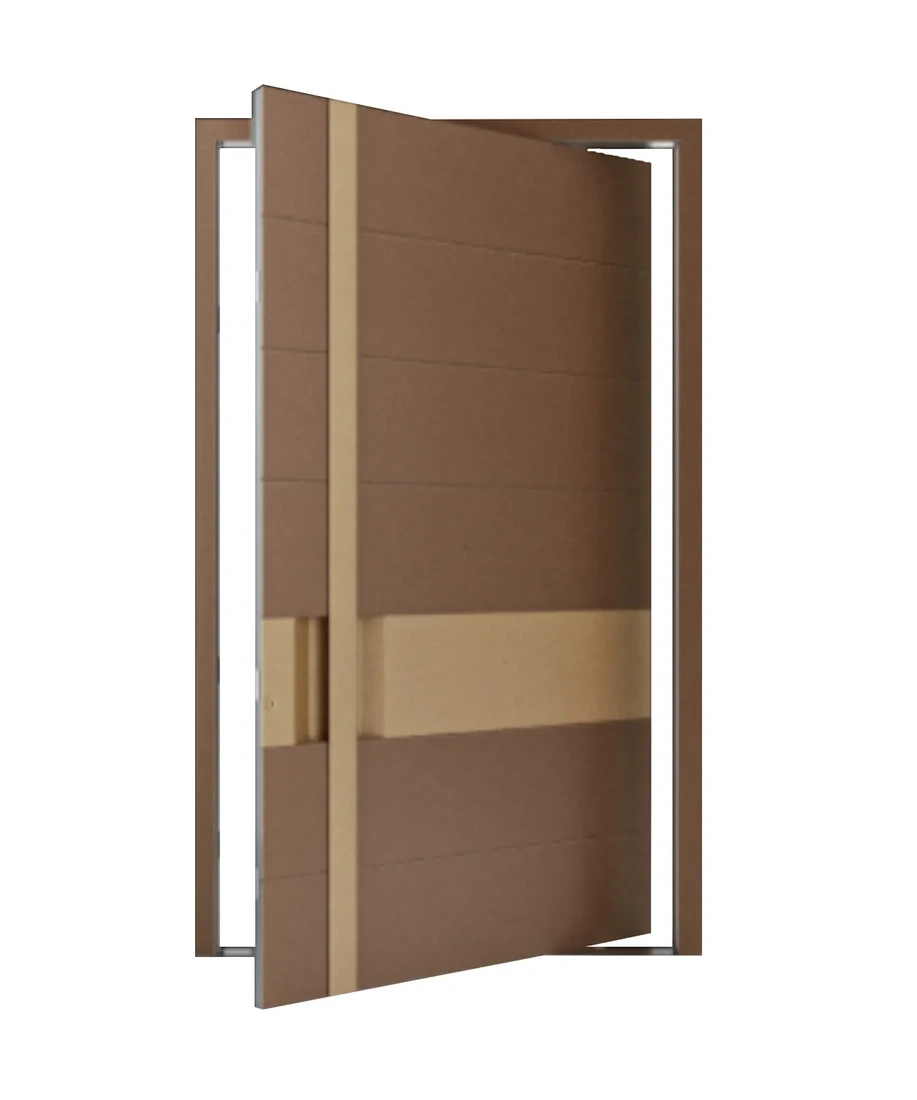

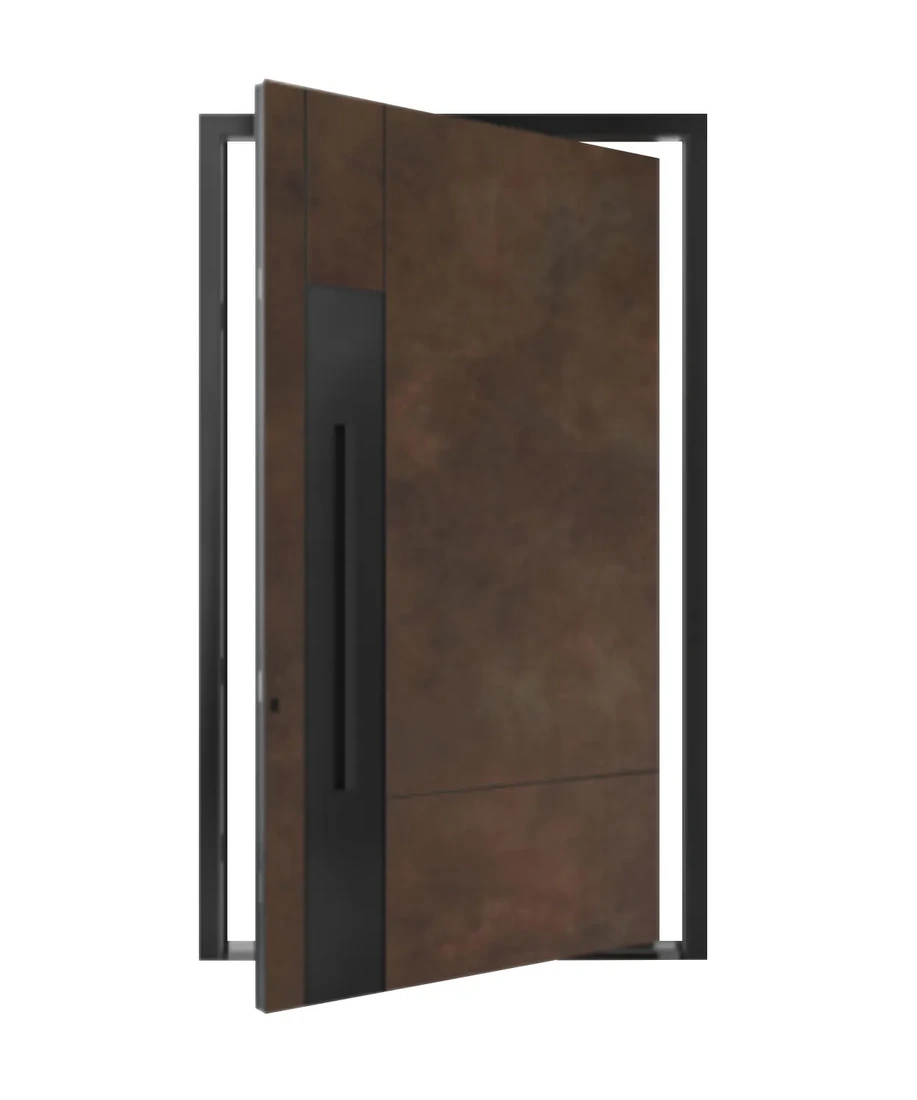

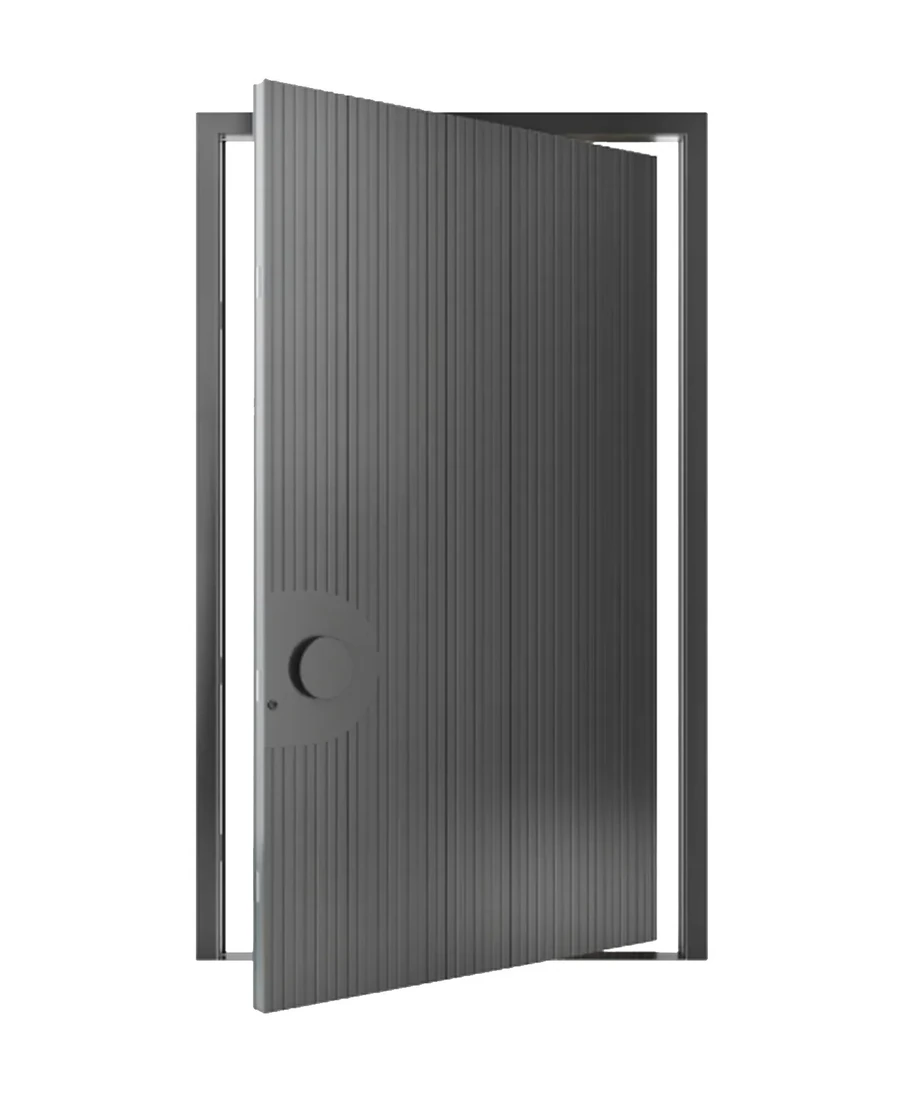

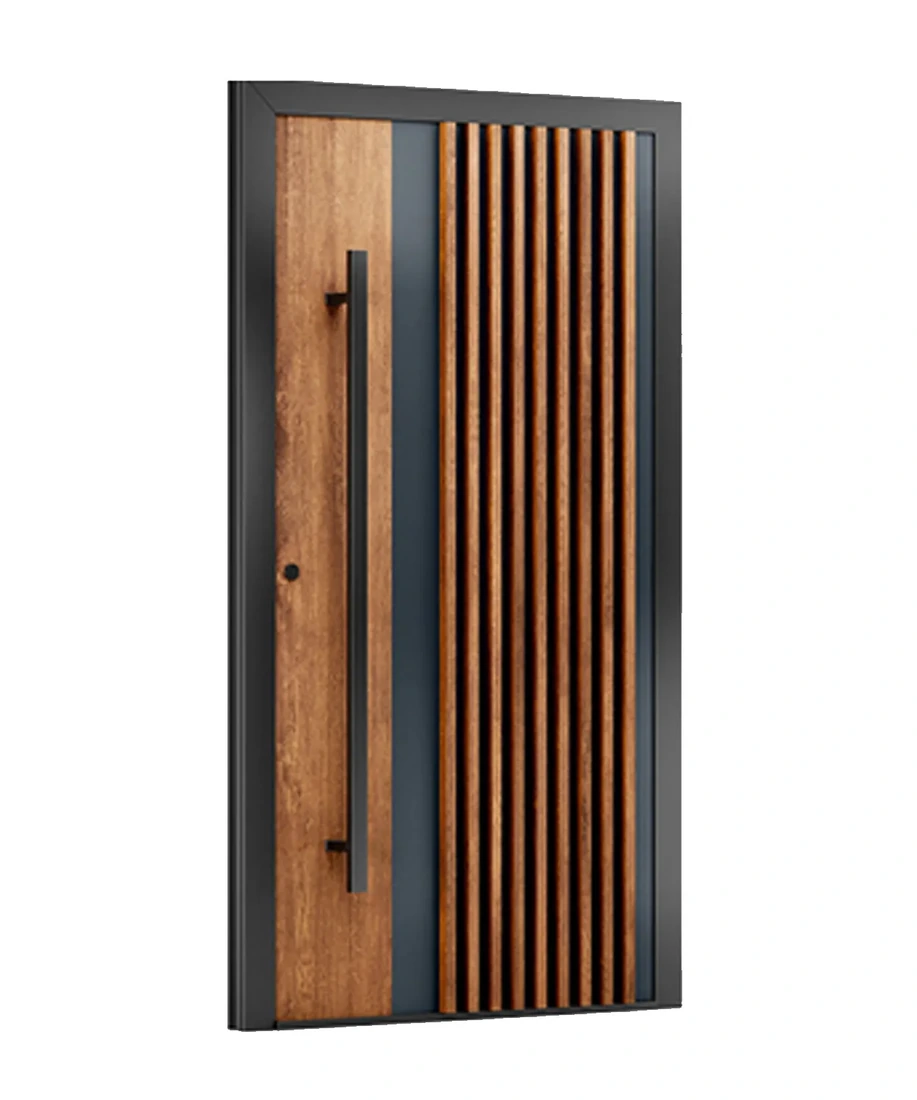

PIVOT is a distinctive aluminium exterior-door system whose leaf rotates around a vertical axis offset from the edge. This opening principle creates a unique façade statement and enables exceptionally large, representative entrances. Concealed high-load hinges support leaves weighing up to 500 kg, while an integrated cable duct allows an illuminated handle and electronic access control.
Request a quote
Key features
A system designed for everyday comfort
- ✓Offset vertical pivot axis
- ✓Concealed high-load hinges
- ✓Leaves up to 2 m wide and 3.4 m high
- ✓Maximum leaf weight of 500 kg
- ✓Integrated cable duct
- ✓Optional illuminated handle and access control
- ✓Panel leaf or insulating glazing up to 60 mm
- ✓One or two synchronised electronic FUHR locks
Door cross-section
Technical data
Exterior doors with offset pivot specification table
| Opening principle | The leaf rotates around a vertical axis offset from the edge |
|---|---|
| Maximum leaf dimensions | Up to 2000 mm wide and 3400 mm high |
| Maximum leaf weight | 500 kg |
| Number of chambers | 3 |
| Installation depth | 77 mm |
| Thermal transmittance | Manufacturer-stated Ud > 0.73 W/(m²K) |
| Sealing | Two EPDM gaskets |
| Infill | Panel leaf or insulating glazing up to 60 mm |
| Wind-load resistance | Class C3 |
| Watertightness | Class 3B |
| Air permeability | Class 3 |
| Locks | Stainless-steel FUHR – one or two synchronised electronic locks |
| Smart functions | Optional illuminated handle and electronic access control |
The maximum dimensions and 500 kg weight apply to the manufacturer-specified MB-86N Pivot Door configuration. Final capabilities depend on the project, selected infill and fittings.
